POE Centralized Power Supply Module Splitter M Synthesizer F
POE Centralized Power Supply Module Splitter M Synthesizer F POE Centralized Power Supply Module Splitter M Synthesizer F POE Centralized Power Supply Module Splitter M Synthesizer F POE Centralized Power Supply Module Splitter M Synthesizer F POE Centralized Power Supply Module Splitter M Synthesizer F POE Centralized Power Supply Module Splitter M Synthesizer F
$15.00

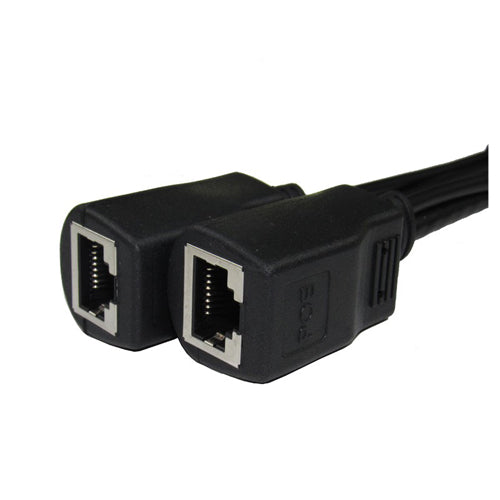

PoE Injector and Splitter - Twisted Pair Video Tranceiver for CCTV

ACCS-HAN04

HW-IPC01

Features

  • The PoE Power over Ethernet kit contains PoE Injector and Splitter. It is suitable for use with products that essentially do not support Power Over Ethernet, is applicable for a wide range of network products like Access Points, Routers, IP Cameras, Modems, Switches, Embedded Computers or other peripherals network, and compatible with most devices available in the market.
  •  Adopt qualified crystal RJ45 Male connectors by design protection, shielded copper bracelet RJ45 Female Jack and non-oxygen copper lines to ensure the stability and speed of power transmission data.
  • Passive PoE: that input and output voltage are equal. Works with all DC powered non-PoE devices, the AC adapter is not included.
  • Supports 5V, 12V, 24V, 48V, max power input / output DC60V, devices can be supplied as standard up to 60V.
  • Passive PoE transmission range is normally 30 to 40m, the actual distance depends on the power supply, cable and device powered by.

Specifications

1) Data Pins 1 and 2/3 and 6; PoE Pins 4 & 5 (+) / 7 & 8 (-) midspan

2) Data in: PC / Hub / Switch, etc; Connector: RJ45 Female

3) Power input / output Max DC60V

4) Data rate: 10/100 Mbps; Ethernet cable: TIA / EIA 568 Cat.5 or Cat.5e

5) Operating Temperature: 0 ° C- + 40 ° C; Storage Temperature: - ° c- + ° c

6) Operating Humidity: 10% -80% RH; Stroage Moisture: 5% -90% RH

7) DC Plug: 2.1x5.5mm

8) Transmission distance: within 30 m.

9) Shelf life: 3-5 years.
