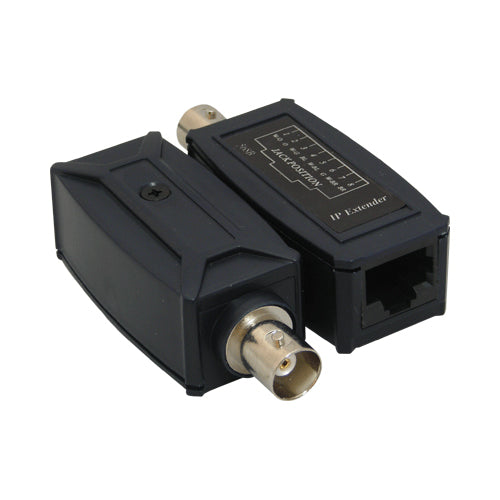

IP Extender Over Coax, BNC (F) to RJ-45 Jack up to 200M
IP Extender Over Coax, BNC (F) to RJ-45 Jack up to 200M IP Extender Over Coax, BNC (F) to RJ-45 Jack up to 200M
$65.00

IP Extender over Coaxial Cable, up to 200 meters

ACCS-HAN07

HW-IP01 / IPE-20C

Features

IPE-20C is a low cost and easy, speedy solution to allow you use existing coax cable to Send IP camera signal. Used in pairs with your RG59 cable to exceed the IEEE802.3 10BaseT NEXT specification. The working range could up to 200 meters at 10Mbps speed.

  • Send IP camera signal over existing coaxial cable.
  • Passive, no power required.
  • Exceeds 802.3 10BaseT NEXT specification, isolating the receiver from the transmitted signal.
  • Transmission up to 200 meters (Max.)
  • VIDEO INPUT (BNC Female connector) : 1
  • Connector: BNC Female Connector to RJ45 Jack
  • Impedance: 50Ω to dual 100Ω or 75Ω to dual 100Ω or 93Ω to dual 100Ω
  • Crosstalk: > 30 dB
  • Coaxial: Coax Cable (RG59)
  • Dimensions (W x H x D m): 69 x 25 x 22
