4-CH XVR 1U Penta-brid HD,CVI,TVI,AHD,&IP 5,MegaPixel-HDMI,VGA
Dahua-oem

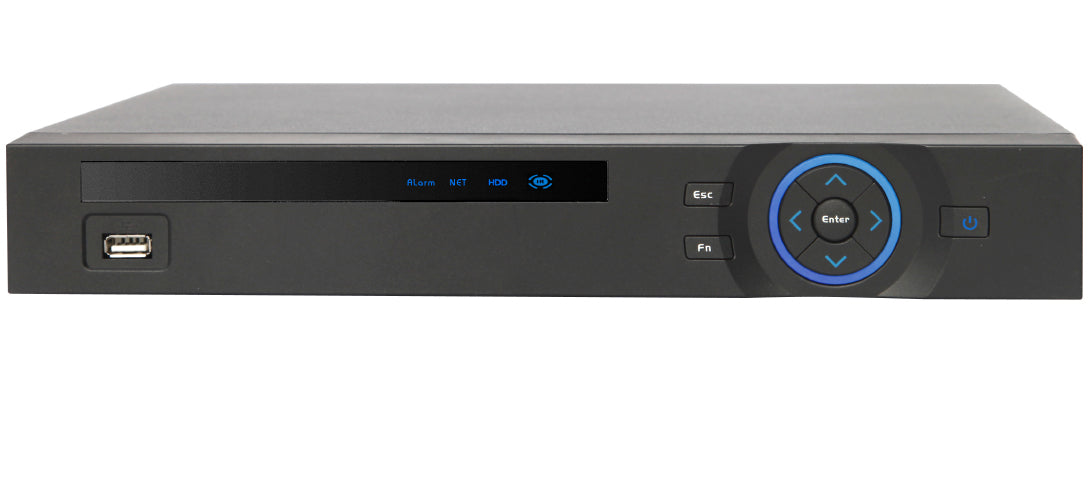

4 Channels Penta-brid 5-MegaPixel Mini 1U Digital Video Recorder
CVR-DAH20A
PVR04H1
Features
- Embedded processor
- H.264+/H.264 dual-stream video compression
- Support HDCVI/AHD/TVI/CVBS/IP video inputs
- Max 6 channels IP camera inputs, each channel up to 5MP
- Max 24 Mbps Incoming Bandwidth
- Smart Search and Intelligent Video System
- HDMI/VGA simultaneous video output
- 4 channel synchronous realtime playback, GRID interface & smart search
- ONVIF Version 2.4.1, GCI conformance
- 3D intelligent positioning with Dahua PTZ dome camera
- Support 1 SATA HDD up to 6TB, 2 USB2.0
- Multiple network monitoring: Web viewer, CMS(DSS/Smart PSS)&Smart Phone(IDMSS)(GDMSS)
- Data
|
Video and Audio |
|
|
Analog Camera Input |
4 Channel, BNC |
|
HDCVI Camera |
5MP, 4MP, 1080P@25/30fps, 720P@50/60fps, 720P@25/30fps |
|
AHD Camera |
5MP, 4MP, 1080P@25/30, 720P@25/30fps |
|
TVI Camera |
5MP, 4MP, 1080P@25/30, 720P@25/30fps |
|
CVBS Camera |
PAL/NTSC |
|
IP Camera Input |
4+2 Channel, each channel up to 6MP |
|
Audio In/Out |
1/1, RCA |
|
Two-way Talk |
Reuse audio in/out, RCA |
|
Recording |
|
|
Compression |
H.265+/H.265/H.264+/H.264 |
|
Resolution |
5M-N, 4M-N, 1080P, 1080N, 720P, 960H, D1, CIF |
|
Record Rate |
Main stream:the 1st channel 5M-N(1~10fps), other channels 4M-N/1080P(1~15fps); 1080N/720P/960H/ D1/CIF (1~25/30fps) Sub stream: D1/CIF(1~15fps) |
|
Bit Rate |
32Kbps ~ 6144Kbps Per Channel |
|
Record Mode |
Manual, Schedule (General, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop |
|
Record Interval |
1 ~ 60 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec |
|
Audio Compression |
AAC(only for the 1st channel), G.711A, G.711U, PCM |
|
Audio Sample Rate |
8KHz, 16 bit Per Channel |
|
Audio Bit Rate |
64Kbps Per Channel |
|
Display |
|
|
Interface |
1 HDMI ,1 VGA |
|
Resolution |
1920×1080, 1280×1024, 1280×720 |
|
Multi-screen Display |
When IP extension mode not enabled: 1/4 When IP extension mode enabled: 1/4/6 |
|
OSD |
Camera title, Time, Video loss, Camera lock, Motion detection, Recording |
|
Network |
|
|
Interface |
1 RJ-45 Port (100M) |
|
Network Function |
HTTP, HTTPS, TCP/IP, IPv4/IPv6, Wi-Fi, 3G/4G, SNMP, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Alarm Server, P2P,IP Search (Supports Dahua IP camera, DVR, NVS, etc.) |
|
Max. User Access |
128 users |
|
Smart Phone |
iPhone, iPad, Android |
|
Interoperability |
ONVIF 16.12, CGI Conformant |
|
Video Detection and Alarm |
|
|
Trigger Events |
Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips |
|
Video Detection |
Motion Detection, MD Zones: 396 (22 × 18), Video Loss, Tampering and Diagnosis |
|
Alarm input |
N/A |
|
Relay Output |
N/A |
|
Playback and Backup |
|
|
Playback |
1/4 |
|
Search Mode |
Time /Date, Alarm, MD and Exact Search (accurate to second) |
|
Playback Function |
Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom |
|
Backup Mode |
USB Device/Network |
|
Storage |
|
|
Internal HDD |
1 SATA Port, up to 10TB capacity |
|
eSATA |
N/A |
|
Auxiliary Interface |
|
|
USB |
2 USB 2.0 |
|
RS232 |
N/A |
|
RS485 |
1 Port, for PTZ Control |
|
Electrical |
|
|
Power Supply |
DC12V/2A |
|
Power Consumption (Without HDD) |
<10W |
|
Construction |
|
|
Dimensions |
Mini 1U, 325mm×255mm×55mm (12.8" x 10" x 2.2") |
|
Device with PFH101 Rack Mount Tray |
483mmx281mmx56mm (19.0"x11.1"x2.2") |
|
Net Weight (without HDD) |
1.0kg (2.2lb) |
|
Gross Weight |
1.9kg (4.2lb) |
|
Installation |
Desktop installation |
|
Environmental |
|
|
Operating Conditions |
-10°C ~ +55°C (+14°F ~ +131°F), 10%~ 90% RH |
|
Storage Conditions |
-20°C ~ +70°C (-4°F ~ +158°F) , 0~ 90% RH |
|
Third-party Support |
|
|
Third-party Support |
Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and more |
|
Certifications |
|
|
Certifications |
FCC: Part 15 Subpart B |
|
CE: CE-LVD: EN 60950-1/IEC 60950-1 CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024 |
|
|
UL: UL 60950-1 |
|
