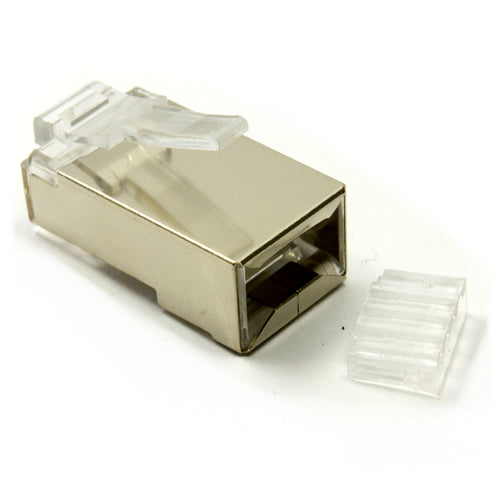

CAT6 EZ-RJ45 Modular Plugs, Premium Quality  (100-Pack)
CAT6 EZ-RJ45 Modular Plugs, Premium Quality  (100-Pack) CAT6 EZ-RJ45 Modular Plugs, Premium Quality  (100-Pack) CAT6 EZ-RJ45 Modular Plugs, Premium Quality  (100-Pack) CAT6 EZ-RJ45 Modular Plugs, Premium Quality  (100-Pack) CAT6 EZ-RJ45 Modular Plugs, Premium Quality  (100-Pack) CAT6 EZ-RJ45 Modular Plugs, Premium Quality  (100-Pack)
$35.00

STP EZ RJ45 Connector CAT5e - Premium Quality (100 pack)

CONN-EZ6

AN-EZ-6-6-01

Features

  • STP EZ RJ45 Connector CAT6 Quality Premium - 100 units
  • Standardized physical network interface. Both jack construction and wiring pattern.
  • Electrical:
    • 1.- Contact Resistance: ≤20m Ohm.
    • 2.- Insulation resistance: ≥1000MΩ.
    • 3.- Dielectric Strength: 1000V/DC 60s can't spark over
  • Mechanical:
    • 1.- Operating temperature: -40°C to +70 °C .
    • 2.- Relative Humidity: <95% (at 25°C).
    • 3.- Durability: 750 mating cycles min.
  • Material:
    • 1.- Housing: Polycarbonate (PC); Flammability Class: UL 94V-0 or UL 94V-2 2.
    • 2.- Contacts: Phosphor bronze, Nickel plating followed with gold plating: 1u to 50u micro-inch.
    • 3.- Shielding Housing Brass with nickel plating or steel with nickel plating.
