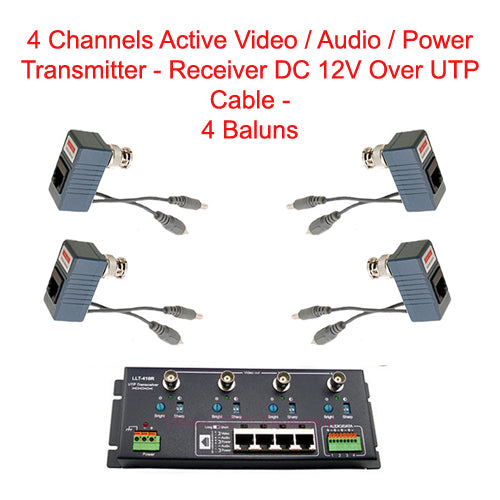

4-CH Active Video/Audio/Power Transmitter / Receiver DC 12V Over UTP Cable
4-CH Active Video/Audio/Power Transmitter / Receiver DC 12V Over UTP Cable 4-CH Active Video/Audio/Power Transmitter / Receiver DC 12V Over UTP Cable 4-CH Active Video/Audio/Power Transmitter / Receiver DC 12V Over UTP Cable 4-CH Active Video/Audio/Power Transmitter / Receiver DC 12V Over UTP Cable
$25.00 $69.00

Video Balun 4-CH Active Video/Audio/Power Transmitter DC 12V Over UTP Cable

ACCS-LSVT05

LLT-410R/LLT-213

Features

  • High quality and long distance transmission (100 - 450M /100 -600M full color)
  • Enable cost-effective, point to point transmission appliance.
  • Outstanding interference rejection
  •  4 Channels active video/audio/power transmitter
  • Frequency respons: DC-6Mhz Conmmon-mode/Differential-mode Rejection:15Khz 6Mhz 60dB typ. - Audio/data: YES (Audio 14dB)
  • Impedance: Coax,male BNC:75ΩUTP(Screwless)Terminal Block or UTP RJ45 Data Connector:100Ω
  • Wire type: One Unshielded Twisted Pair 24-16AWG(0.5-1.31mm) Per video signal:DC Loop Resistance 52 ohms per 1,000 ft(18 ohms per 100m)
  • Surge suppression: 6000V 1.2μ S*5μ S - Control: Brightness/Range. - UTP Port: RJ45 and Terminal Block.
