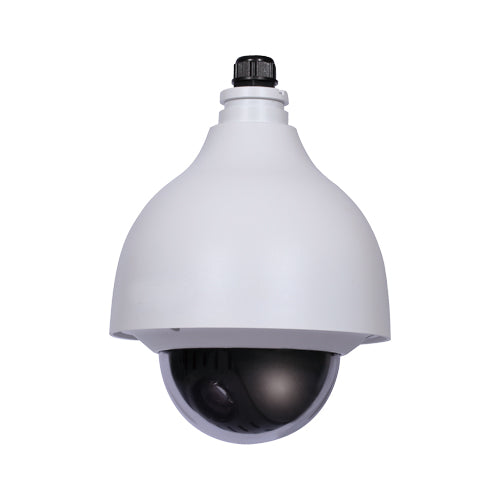

2MP 1080P Mini 12X Optical Zoom PTZ Outdoor AC24V K10/IP66 2/1CH Alarm
2MP 1080P Mini 12X Optical Zoom PTZ Outdoor AC24V K10/IP66 2/1CH Alarm 2MP 1080P Mini 12X Optical Zoom PTZ Outdoor AC24V K10/IP66 2/1CH Alarm 2MP 1080P Mini 12X Optical Zoom PTZ Outdoor AC24V K10/IP66 2/1CH Alarm
$395.00

2MP 12x Starlight PTZ HDCVI Camera

CAMS-DAH96A

DH-SD40212I-HC

Features



  • 1/2.8” 2Megapixel STARVIS™ CMOS
  • Powerful 12x optical zoom
  • Starlight technology
  • Max. 25/30fps@1080P, 25/30/50/60fps@720P
  • 120dB true WDR, 3D DNR
  • IP66, IK10



System Overview

Featuring with powerful optical zoom and accurate pan/tilt/zoom performance, the SD40 series PTZ camera can provide large monitoring range and great detail. The camera delivers 1080P resolution at 25/30 fps, with 12x optical zoom, and has very excellent low light performance due to adopting the latest starlight technology. SD40 series PTZ is equipped with quick and smooth control, high quality image and good protection, which make it can meet most of the requirements of video surveillance applications.

Technical Specification

Camera



  • Image Sensor 1/2.8” STARVIS™ CMOS
  • Effective Pixels 1920(H) x 1080(V), 2 Megapixels
  • Scanning System Progressive
  • Electronic Shutter Speed 1/1s~1/30,000s
  • Minimum Illumination Color: 0.005Lux@F1.6; B/W:0.0005Lux@F1.6
  • S/N Ratio More than 50dB
  • IR Distance N/A
  • IR On/Off Control N/A
  • IR LEDs N/A



Lens



  • Focal Length 5.3mm~64mm
  • Max. Aperture F1.6 ~ F3.0
  • Angle of View H: 58.4° ~ 4.9°
  • Optical Zoom 12x
  • Focus Control Auto/Manual
  • Close Focus Distance 100mm~ 1000mm



DORI Distance

*Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.

  • Detect:  883m(2897ft)
  • Observe:  353m(1158ft)
  • Recognize:  177m(581ft)
  • Identify:  88m(289ft)



PTZ

  • Pan/Tilt Range Pan: 0° ~ 360° endless; Tilt: -2° ~ 90°,auto flip 180°
  • Manual Control Speed Pan: 0.1° ~300° /s; Tilt: 0.1° ~120° /s
  • Preset Speed Pan: 300° /s; Tilt: 200° /s
  • Presets 300
  • PTZ Mode 5 Pattern, 8 Tour, Auto Pan ,Auto Scan
  • Speed Setup Human-oriented focal Length/ speed adaptation
  • Power up Action Auto restore to previous PTZ and lens status after
  • power failure
  • Idle Motion Activate Preset/ Scan/ Tour/ Pattern if there is no
  • command in the specified period
  • Protocol DH-SD, Pelco-P/D (Auto recognition)

Video

  • Resolution 1080P(1920×1080)/720P(1280×720)
  • Frame Rate 25/30fps@1080P, 25/30/50/60fps@720P
  • Video Output 1-channel BNC high definition video output/ CVBS
  • standard definition video output (switchable)
  • Day/Night Auto(ICR) / Color / B/W
  • OSD Menu Support
  • Backlight Compensation BLC / HLC / WDR(120dB)
  • White Balance Auto, ATW, Indoor, Outdoor, Manual
  • Gain Control Auto / Manual
  • Noise Reduction Ultra DNR (2D/3D)
  • Digital Zoom 16x
  • Flip 180°
  • Privacy Masking Up to 24 areas

Certifications

  • CE: EN55032/EN55024/EN50130-4
  • FCC: Part15 subpartB,ANSI C63.4- 2014
  • UL: UL60950-1+CAN/CSA C22.2,No.60950-1

Interface

  • Video Interface 1
  • Audio Interface 1 channel in
  • RS485 1
  • Alarm I/O 2/1

Electrical

  • Power Supply AC24V/1.5A(±10%)
  • Power Consumption 10W,19W (Heater on)

Environmental

  • Operating Conditions -40°C ~ 60°C (-40°F ~ +140°F) / Less than 90% RH
  • Ingress Protection IP66
  • Vandal Resistance IK10

Construction

  • Casing Metal
  • Dimensions Φ186(mm) x 234(mm)
  • Net Weight 2.3kg(5.07lb)
  • Gross Weight 4.3kg(9.48lb)
