2Mp Exmor CMOS PTZ 4.7~94mm H.264/MJPEG IR LEDs up to 150m
2Mp Exmor CMOS PTZ 4.7~94mm H.264/MJPEG IR LEDs up to 150m 2Mp Exmor CMOS PTZ 4.7~94mm H.264/MJPEG IR LEDs up to 150m
$650.00

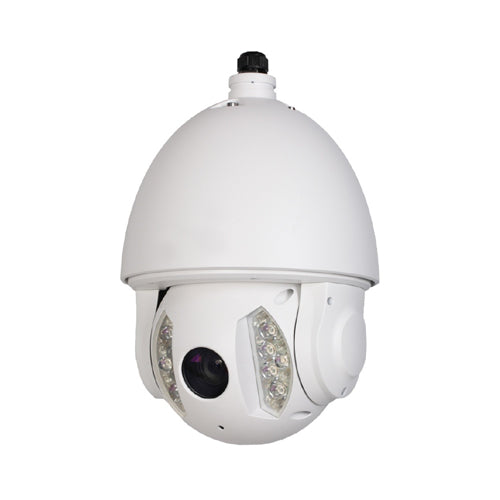

2Mp Full HD 20x Network IR PTZ Dome Camera

CAMS-DAH26

HD-SD6A220-HNI

Features

  • Powerful 20x optical zoom
  • H.264 & MJPEG dual-stream encoding
  • Max 60fps@720P and 30fps@1080P resolution
  • Defog(220/230), DWDR(WDR), Day/Night(ICR), Ultra DNR, EIS(220/230), Auto iris, Auto cus
  • Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
  • Max 240°/s pan speed, 360° endless pan rotation
  • Up to 255 presets, 5 auto scan, 8 tour, 5 pattern
  • Built-in 7/2 alarm in/out
  • Support intelligent 3D positioning with DH-SD protocol
  • Micro SD memory, IP66
  • IR Distance up to 150m



Technical Specification

Camera



  • Image Sensor 1/3" Exmor CMOS
  • Effective Pixels 1944(H) x 1092(V),2 Megapixels
  • Scanning System Progressive
  • Electronic Shutter Speed 1/1s~1/30,000s
  • Minimum Illumination Color: 0.005Lux@F1.6; B/W:0.0005Lux@F1.6
  • S/N Ratio More than 50dB
  • Video Output BNC (1.0Vp-p/75Ω), PAL / NTSC



 Camera Features



  • Day/Night Auto(ICR) / Color / B/W
  • Backlight Compensation BLC / HLC /DWDR (Digital WDR)
  • White Balance Auto, ATW, Indoor, Outdoor, Manual
  • Gain Control Auto / Manual
  • Noise Reduction Ultra DNR(2D/3D)
  • Privacy Masking Up to 24 areas
  • Digital Zoom 16x
  • Defog On / Off



 Lens



  • Focal Length 4.3mm~94mm (20x Optical Zoom)
  • Max. Aperture F1.6 ~ F3.5
  • Angle of View H: 55.4° ~ 2.80°
  • Optical Zoom 20x
  • Focus Control Auto/Manual
  • Close Focus Distance 10mm~ 1000mm



 PTZ

  • Pan/Tilt Range Pan: 0° ~ 360° endless; Tilt: -10° ~ 90°,auto flip 180°
  • Manual Control Speed Pan: 0.1° ~200° /s; Tilt: 0.1° ~120° /s
  • Preset Speed Pan: 240° /s; Tilt: 200° /s
  • Preset 80 (DH-SD), 255 (Pelco-P/D)
  • PTZ Mode 5 Pattern, 8 Tour, Auto Pan ,Auto Scan
  • Speed Setup Human-oriented focal Length/ speed adaptation
  • Power up Action Auto restore to previous PTZ and lens status after
  • power failure
  • Idle Motion Activate Preset/ Scan/ Tour/ Pattern if there is no
  • command in the specified period
  • Protocol DH-SD, Pelco-P/D (Auto recognition)
  • IR Distance 150m (2 near IR LED + 8 far IR LED)

 Video

  • Resolution 1080P(1920×1080)/720P(1280×720) / D1(704x576/704x480) / CIF(325x288/352x240)
  • Frame Rate 1~ 25/30fps@1080P, 1~50/60fps@720P, 1~ 25/30fps@D1/CIF
  • Bit Rate H.264: 56K ~ 8192Kbps, MJPEG: 56K ~ 20480Kbps

 Audio

  • Compression G.711a / G.711u(32Kbps)/ PCM(128Kbps)
  • Interface 1/1 channel In / Out

 Intelligence Function

  • Auto Tracking Single-scene, multiple-scene, panorama-scene
  • IVS Tripwire, Cross Warning Zone, Perimeter Protection, Loitering Detection, Abandoned Object Detection, Missing Object Detection, Illegal Parking, Fast Moving and etc.
  • Tracking TriggerMode Manual / Auto (alarm triggered)
  • Tracking Trigger Event Targeting, Zoom, Tracking, Recording, Snapshot, Alarm and etc.

 Network

  • Ethernet RJ-45 (10/100Base-T)
  • Protocol IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, 802.1x
  • ONVIF ONVIF Profile S
  • Max. User Access 20 users
  • Smart Phone iPhone, iPad, Android, WindowsPhone

 Auxiliary Interface

  • Memory Slot Micro SD, Max 64GB
  • RS485 1
  • ALARM 7/2 Channel In/out

 General

  • Power Supply AC 24V/3A(±16%)
  • Power Consumption 20W,43W(IR on, Heater on)
  • Working Environment -40ºC ~ 70ºC/ Less than 90% RH
  • Ingress Protection IP66
  • Vandal Resistance 4000V anti-lightningsurge
  • Dimensions Φ252(mm) x 384.3(mm)
  • Weight 6.75 Kg (14.88)
