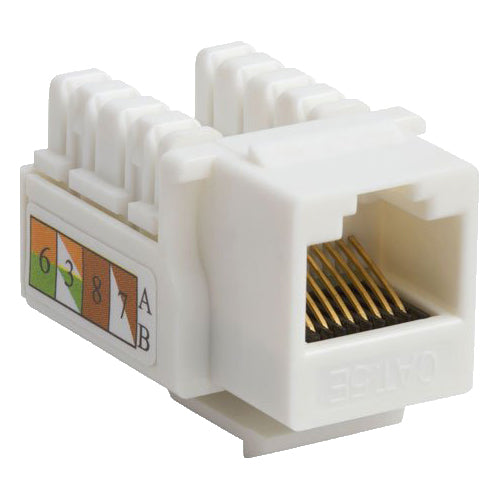

RJ45 Cat 5e Keystone Jack 90 degree Network Connector
RJ45 Cat 5e Keystone Jack 90 degree Network Connector RJ45 Cat 5e Keystone Jack 90 degree Network Connector RJ45 Cat 5e Keystone Jack 90 degree Network Connector RJ45 Cat 5e Keystone Jack 90 degree Network Connector
$5.00

CAT5e 90 Keystone Jack- White

JACK-KEY05

03790

Features

  • The premium RJ45 Keystone Jack 90 degree is designed for superior performance that meets or exceeds industry standard TIA/EIA 568-A-5 requirements
  • The Cat.5e Keystone Jack (90) will balance signal transmission of insertion loss and crosstalk from 1 to 100MHz
  • The jacks are designed to work in conjunction with wall plates and surface boxes or any standard keystone and angled multimedia wall plate or patch panel
  • IDC Contact: 50 micron Gold coated,0.5mm Wire Dia. IDC connection ≥200 times
  • Contact Resistance: ≤2.5 M ohm
  • Insulation Resistance: ≥1000 M ohm
  • Dielectric Strength: DC1000V or AC700V in 1 min.,No Arc & Spark-over
  • Life Span: Plug/Pull ≥750 times.
