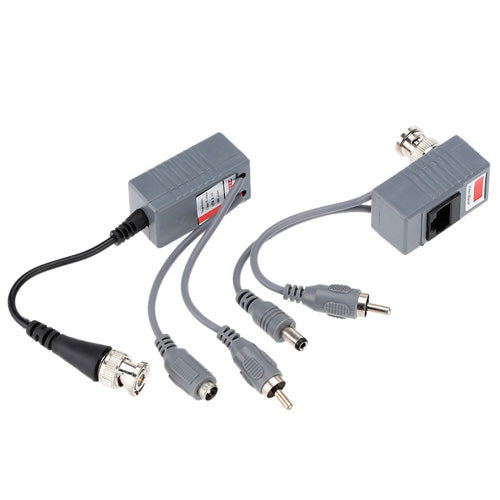

Single-Channel Passive Video/Audio Balun 24AWG UTP CAT-5

Single-Channel Passive Video/Audio Balun

ACCS-HAN10

LLT213/LLT213A

Features

• 2 pcs / kit
• Easy to use and install
• High quality and long-lasting performance
• Provide video/audio / 12 volts power interfaces
• Interference:> 40dB
• Transmission Distance: 2200 Ft
• BNC Resistance: 75ohm
• UTP Resistance: 100ohm
• Maximum output: 1.1Vp-p
• Loss Ratio:> 2dB
• Rejection Rate: <15dB
• Package Size: 9.9 * 14.3 * 2.5 cm / 3.89 * 5.63 * 0.98 inches
• Material: Plastic ABS
