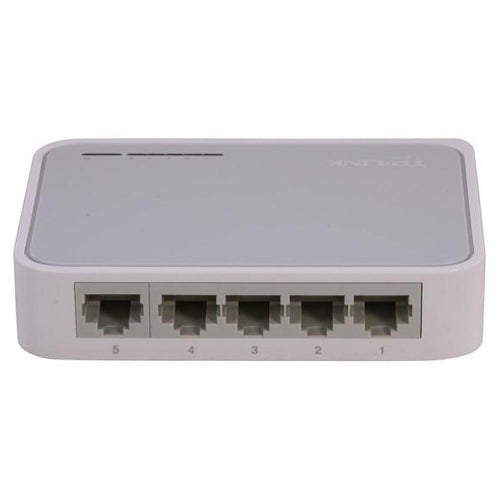

TP-Link 5-Port 10/100M Fast Ethernet Switch TL-SF1005D
TP-Link 5-Port 10/100M Fast Ethernet Switch TL-SF1005D TP-Link 5-Port 10/100M Fast Ethernet Switch TL-SF1005D TP-Link 5-Port 10/100M Fast Ethernet Switch TL-SF1005D TP-Link 5-Port 10/100M Fast Ethernet Switch TL-SF1005D TP-Link 5-Port 10/100M Fast Ethernet Switch TL-SF1005D
$22.00

5-Port 10/100Mbps Desktop Switch

HUB-TPL01

TL-SF1005D

Features



  • 5 10/100M Ports, Auto MDI/MDIX
  • Save the power up to 60%
  • IEEE 802.3x flow control
  • Plug and Play
  • Plastic case, desktop design
  • Innovative energy-efficient technology saves power up to 60%
  • Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode
  • Non-blocking switching architecture that forwards and filters packets at full wire-speed for maximum throughput
  • Auto-MDI/MDIX eliminates the need for crossover cables
  • Supports MAC address auto-learning and auto-aging
  • Auto-negotiation ports provide smart integration between 10Mbps, 100Mbps and 1000Mbps hardware
  • Fanless design ensures quiet operation
  • Desktop design
  • Plug and Play design simplifies installation

Specifications

Model

Brand
TP-Link
Model
TL-SF1005D

Format & Standards

Format
Desktop
Standards
IEEE802.3, IEEE802.3u, IEEE 802.3x
Network Management Type
Unmanaged

Ports & Interface

Uplink Ports
None
Primary Ports
5 x RJ45
Primary Port Speed
10/100Mbps

Data Transmission

Switching Method
Store and Forward
VLAN Support
No

Details

PoE
No
Layer
Layer 2 Only
LEDs
Power, Link/Act
Power
100~240VAC, 50/60Hz

Dimensions & Weight

Dimensions
4.1" x 2.8" x 0.9"
Weight
0.4

Environmental

Temperature
0ºC to 40ºC (32ºF to 104ºF)
Humidity
10% - 90%, Non-condensing

Packaging

Package Contents
5-Port 10/100Mbps Desktop Switch
Power Adapter
User Guide
