10-Port Gigabit 8+2 POE Switch 15.4W,2 fixed VLAN, long distance
10-Port Gigabit 8+2 POE Switch 15.4W,2 fixed VLAN, long distance 10-Port Gigabit 8+2 POE Switch 15.4W,2 fixed VLAN, long distance 10-Port Gigabit 8+2 POE Switch 15.4W,2 fixed VLAN, long distance 10-Port Gigabit 8+2 POE Switch 15.4W,2 fixed VLAN, long distance 10-Port Gigabit 8+2 POE Switch 15.4W,2 fixed VLAN, long distance 10-Port Gigabit 8+2 POE Switch 15.4W,2 fixed VLAN, long distance 10-Port Gigabit 8+2 POE Switch 15.4W,2 fixed VLAN, long distance
$110.00

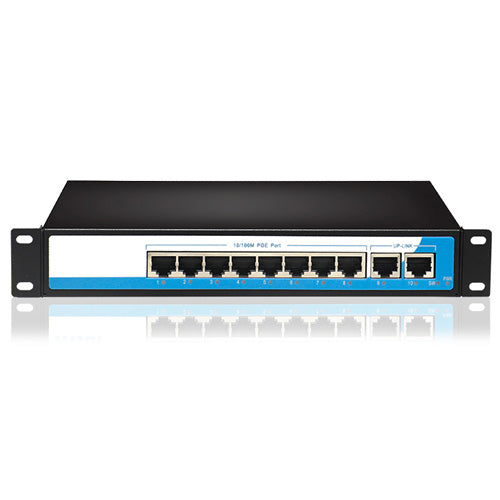

Full Gigabit (10/100/1000M) 8+2 POE Switch

SWI-RUI10A

HR901-AFG-82N

Features

  • 8*100/1000M RJ45 POE port+2*100/1000M RJ45 uplink port
  • Support IEEE802.3,IEEE802.3U,IEEE802.3af/at
  • Ethernet prot support 100/1000M and POE function
  • Flow control:Full-duplex:IEEE802.3x,Half-duplex:Back pressure
  • Support port anto MDI/MDIX
  • With storing-and-forwarding mode
  • All port support line swithing and jumbo frame
  • Zero configuration features, automatically provided to the adaptive device
  • Panel lights to monitor the working status and help failure analysis
  • With DIP switch Extend mode to support 250 meters long distance transmission (Cat.6 cable)
  • Support fixed VLAN
  • IEEE 802.3af power on up to 8 ports
  • Supply power to wireless access points and surveillance cameras over Cat-5 cabling
  • 10*10/100/1000 Mbps Ports with AutoUplink™
  • Supports PoE power up to 15.4W for each PoE port
  • Supports PoE power up to 150W for all PoE ports
  • Supports PoE IEEE 802.3af compliant PDs
  • Supports IEEE 802.3x flow control for Full-duplex Mode and back pressure for Half-duplex Mode
  • 2K entry MAC address table of the PoE Switch with auto-learning and auto-aging
  • LED indicators for monitoring power, link
  • Internal power adapter supply
  • All PoE Port with 6KV Thunder Protection

  • Product size(L×W×H)：220mm*161mm*37mm

  • Packing size(L×W×H)：303mm*181mm*57mm

Application

  • D monitor transmission and power supply
  • Wireless AP layout transmission and power supply
  • Network telephone transmission , intelligent house and home system
  • Intelligent transportation supervisory system (ITS)
  • High-speed Way supervisory/Tele-Communication System
  • Security protection system, TV medical treatment
  • Long-distance Muti-media Schooling, Campus monitoring
  • Long-distance broadcast television transmission system
  • High-building Security Protection, Military Tele-Com project
